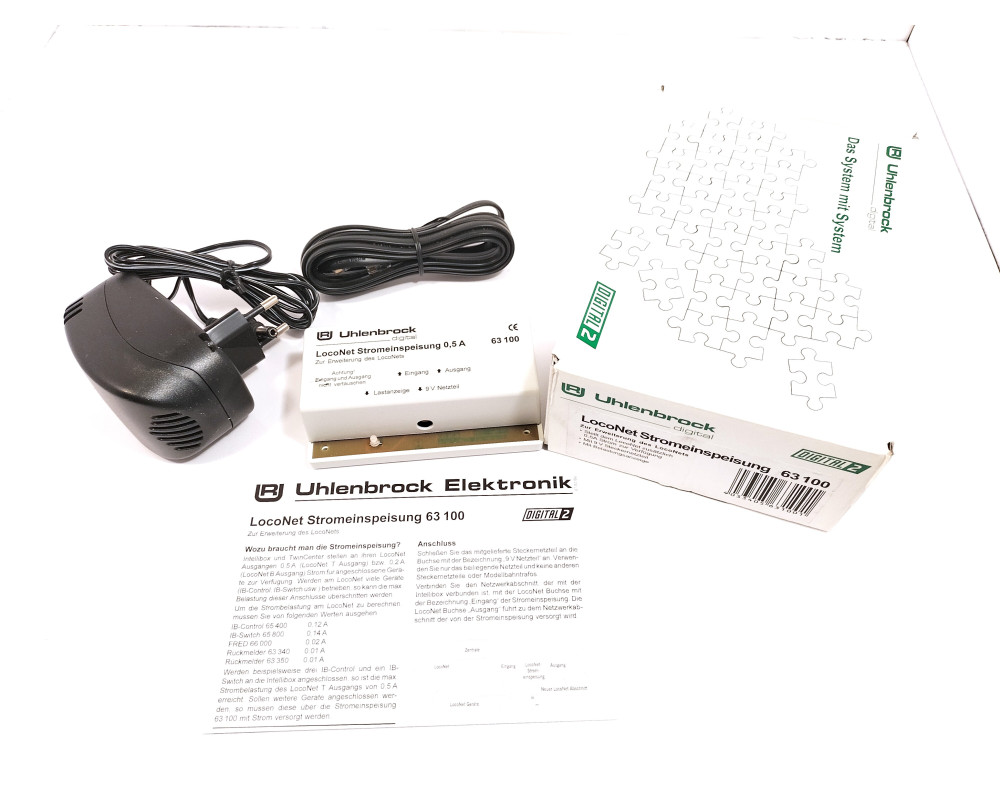

Loconet power supply for current integration

Loconet power supply for current integration

Uhlenbrock Elektronik
UH63100

Power supply: Why is a power supply needed?

The Intellibox and TwinCenter provide 0.5 A (LocoNet T output) or 0.2 A (LocoNet B output) of power for

the devices connected to their LocoNet outputs. If many devices (IB-Control, IB-Switch, etc.) are used

on the LocoNet, the maximum load on these connections may be exceeded. To calculate the current load

on the LocoNet, the following values ​​must be used:

IB-Control 65400 0.12 A

IB-Switch 65800 0.14 A

FRED 66000 0.02 A

Feedback sensor 63340 0.01 A

Feedback sensor 63350 0.01 A

For example, if three IB-Control and one IBSwitch are connected to the Intellibox, the maximum current load

of the LocoNet T output of 0.5 A is reached. If you want to connect additional devices, they must be powered

via the 63100 power supply

Hurry! only 2 items left in stock.
€46.80
Tax included
Quantity

Power supply: Why is a power supply needed?

The Intellibox and TwinCenter provide 0.5 A (LocoNet T output) or 0.2 A (LocoNet B output) of power for

the devices connected to their LocoNet outputs. If many devices (IB-Control, IB-Switch, etc.) are used

on the LocoNet, the maximum load on these connections may be exceeded. To calculate the current load

on the LocoNet, the following values ​​must be used:

IB-Control 65400 0.12 A

IB-Switch 65800 0.14 A

FRED 66000 0.02 A

Feedback sensor 63340 0.01 A

Feedback sensor 63350 0.01 A

For example, if three IB-Control and one IBSwitch are connected to the Intellibox, the maximum current load

of the LocoNet T output of 0.5 A is reached. If you want to connect additional devices, they must be powered

via the 63100 power supply

: UH63100
