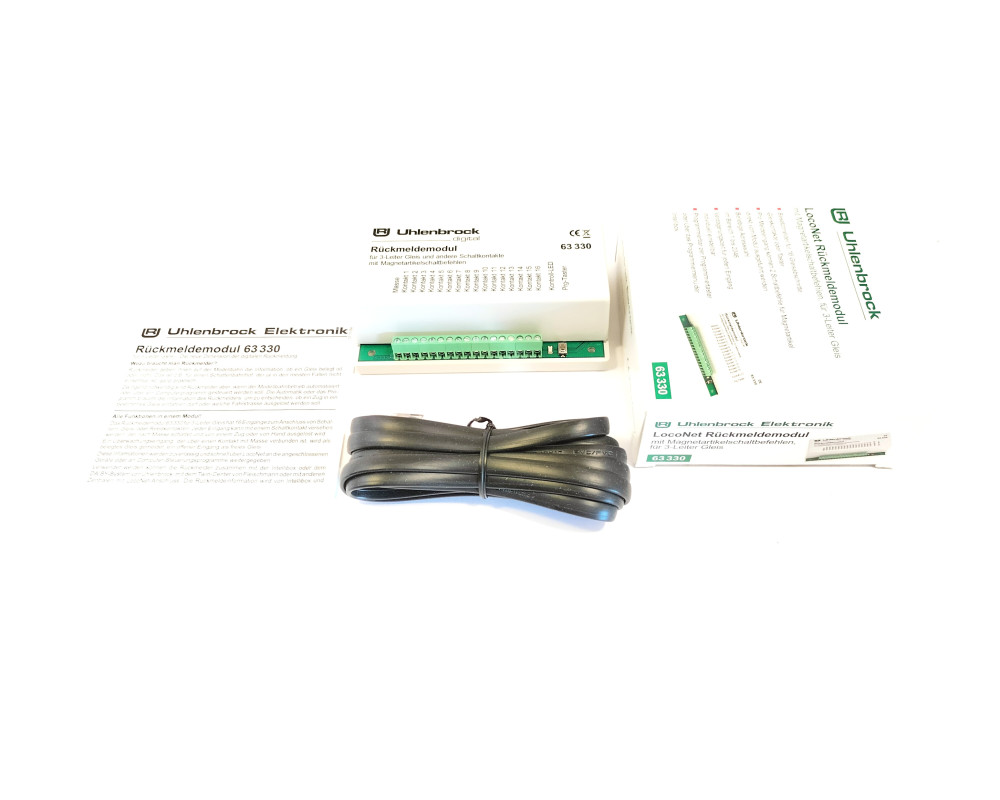

LocoNet Occupancy Detection Modules for 2-Rail Operation
LocoNet Occupancy Detection Modules for 2-Rail Operation
The module provides sixteen inputs, each of which
is used to monitor a section of track.
One rail in each sector must be isolated from
the rest of the track and connected to the detector input.
A vehicle will trigger a Occupancy message
by bridging the sector rails with its non-isolated wheelsets.
All inputs can also be shorted to ground via a reed contact or a manual switch to
also generate the message.
